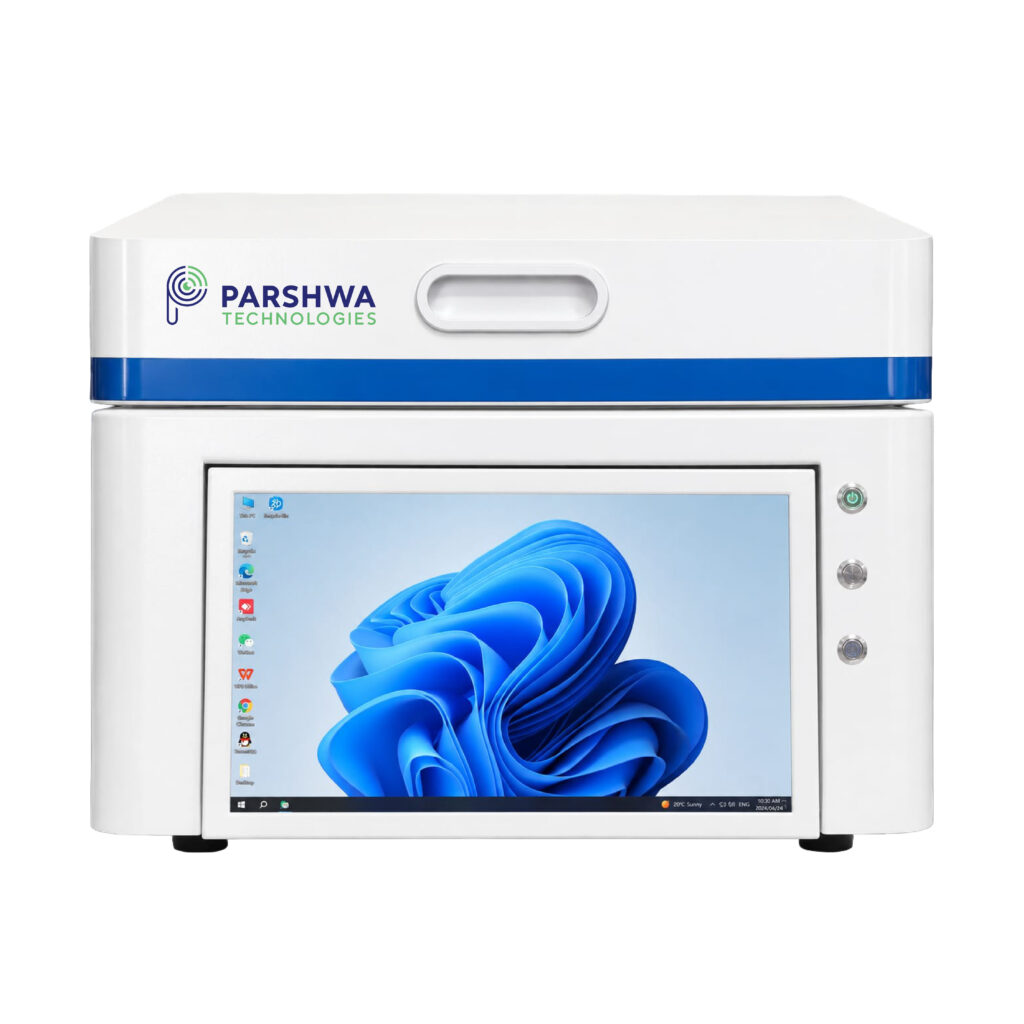

IONX-500D - Smart Testing. Confident Valuation.
IONX-500D is a compact Precious Metal Analyzer built for fast, non-destructive and highly accurate gold purity testing. With accuracy up to 0.03%, touchscreen operation and advanced multi-element analysis, it helps businesses test smarter and make confident decisions.
Ideal for Gold Shops, Gold Loan Companies, Banks, Hallmarking Centres, Pawn Brokers & NBFCs.
Test Gold with Confidence. Value with Precision.
Compact Machine. Powerful Business Advantage.
High Accuracy
Up to 0.03%
Easy to Operate
User-friendly software
with touchscreen
Reliable & Durable
Built for continuous
performance
Make in India
Service & support
you can count on
| Performance and Configuration | |
|---|---|
| Analysis Range | ppm to 99.99% |
| Accuracy | ±0.03% (Au ≥99.9%) |
| Sample Form | Solid / powder / liquid |
| Technical Specifications | |
|---|---|
| High Voltage | 0–50kV / 0–1mA |
| Detector | SiPIN (Amptek USA) |
| Resolution | 165 ± 5 eV |
| X-ray Source | W-target X-ray tube, Be window, air cooled |
| Collimator | 2mm (Optional 1mm) |
| Sample Chamber | 300 × 300 × 100 mm |
| Test Time | 10–60 sec |
| Measuring Elements | Na (11) to U (92), except light elements |
| Camera | HD Camera |
| Filters | Customizable |
| Analyzer | Digital multichannel |
| Software | Parshwa Technologies Qualitative & Quantitative Analysis Software |
| Dimensions | 400 × 350 × 280 mm |
| Net Weight | About 26 kg |
| Environmental Conditions | |
|---|---|
| Temperature | 15°C–30°C |
| Humidity | 15%–75% |
| Power Supply | AC 220V ±5V, 50/60 Hz |
| Interference | No high-power electromagnetic or vibration interference |
