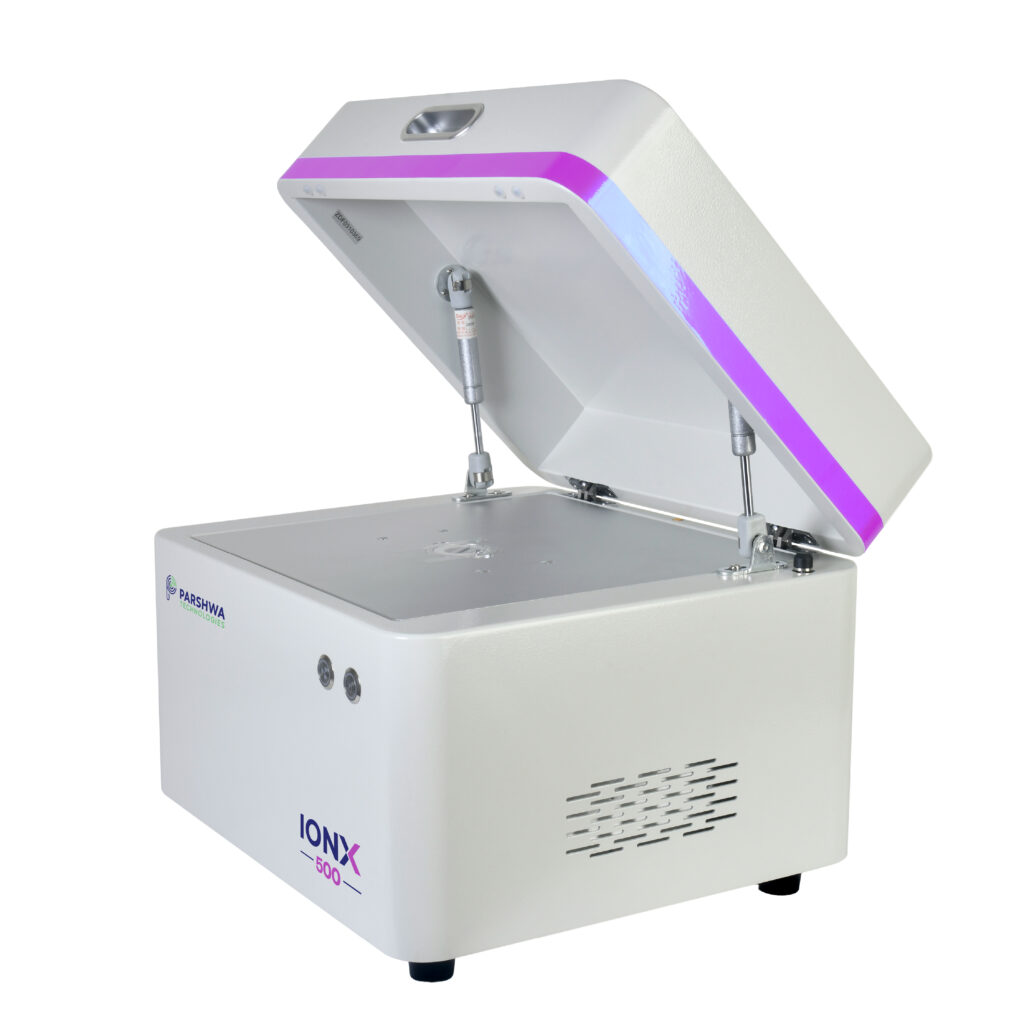

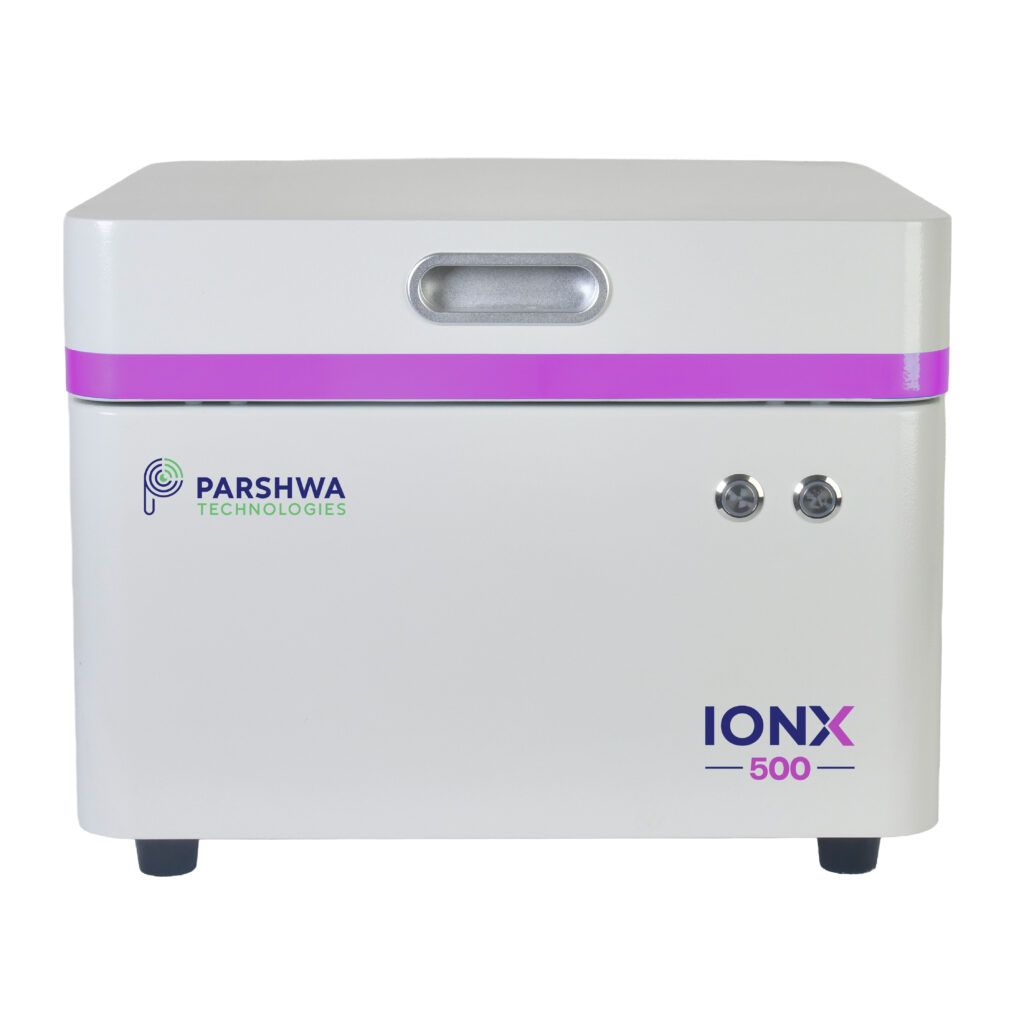

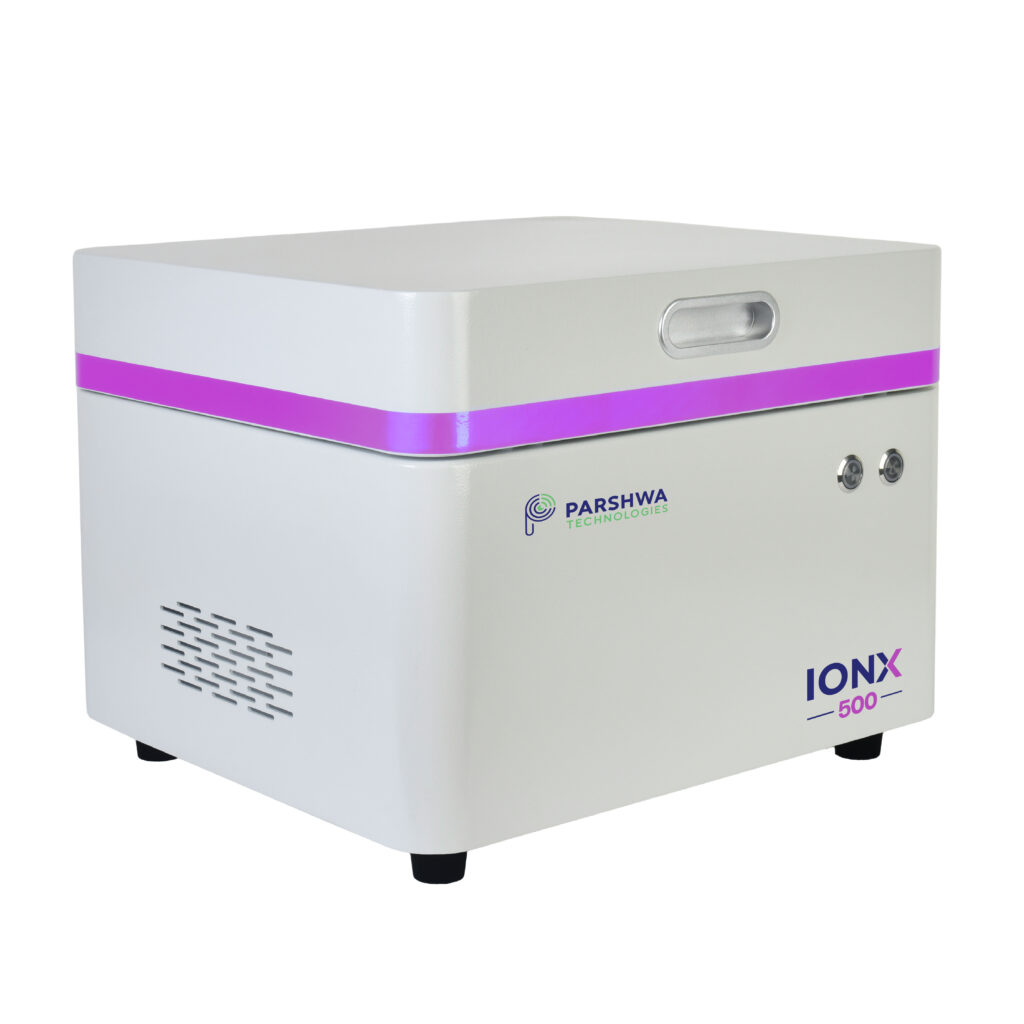

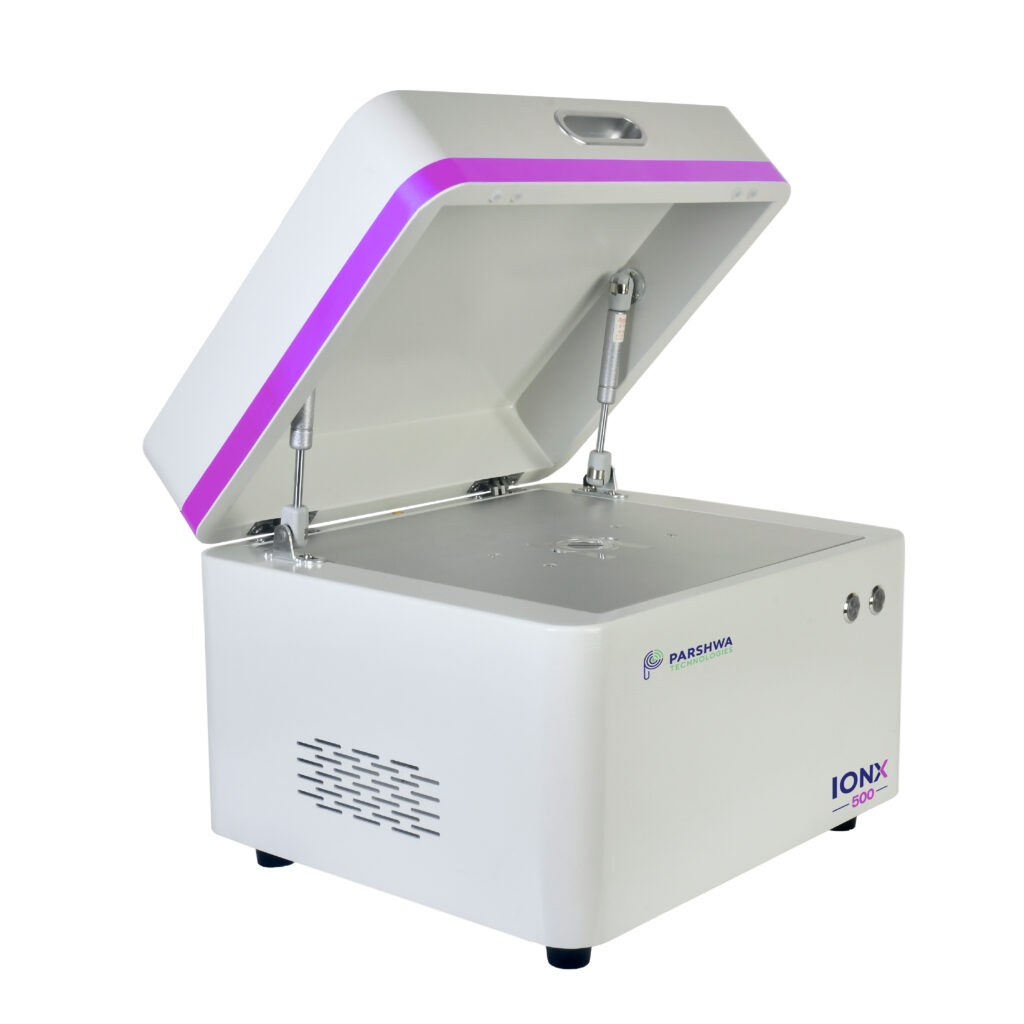

IONX-500 - Small Machine. Powerful Gold Testing.
IONX 500 brings fast, non-destructive and highly accurate gold purity testing into a compact, business-friendly solution. With accuracy up to 0.03% and testing from Na to U, it helps you make confident valuation and purchasing decisions.
Ideal for Gold Shops, Gold Loan Companies, Banks, Hallmarking Centres, Pawn Brokers and NBFCs.
Test Faster. Value Smarter. Build Trust.
Compact in Size. Powerful in Performance.
High Accuracy
Up to 0.03%
Compact Size
Maximum Intelligence.
Minimum Space.
Reliable & Durable
Built for continuous performance
Make in India
Service & support you can count on
| Performance and Configuration | |
|---|---|
| Analysis Range | ppm to 99.99% |
| Accuracy | ±0.03% (Au ≥99.9%) |
| Sample Type | Solid, Powder, Liquid |
| Technical Specifications | |
|---|---|
| High Voltage | 0–50kV |
| Detector | SiPIN (Amptek USA) |
| Resolution | 165 ± 5 eV |
| X-ray Source | W-target with Be window |
| Sample Chamber | 300 × 300 × 100 mm |
| Test Time | 5–60 sec |
| Measuring Elements | Na (11) to U (92) |
| Camera | HD Camera |
| Analyzer | Digital Multichannel Analyzer |
| Software | Parshwa Technologies Qualitative & Quantitative Analysis Software |
| Size | 400 × 350 × 300 mm |
| Weight | 35 kg |
| Environmental Conditions | |
|---|---|
| Operating Temperature | 5°C–38°C |
| Humidity | 15%–90% |
| Power Supply | AC 220V ±5V, 50/60 Hz |
| Interference Protection | Low electromagnetic & vibration interference recommended |
